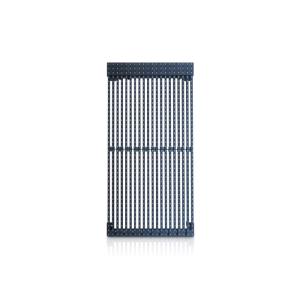

Facades Outdoor LED Curtain APEXLS Display Led Transparent Display

Curtain LED Display

APEXLS LED Curtain Display , also called LED Mesh Display, is high transparency outdoor led display.It is 65% lighter than conventional LED display and has less requirement for steel structure than conventional LED Display. High transparency ensure it reduce much impact of the natural lighting and provide better viewing for buildings than conventional one.

Applications:

Widely used at the top of buildings, facades, urban landmark buildings, municipal building,etc.

Product Features:

1. Ultra-light design,High permeability
2. Efficient waterproof performance

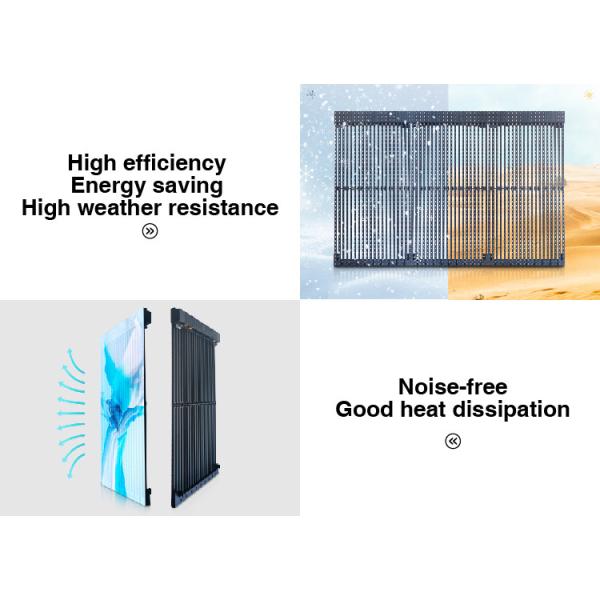

3. High efficiency,Energy saving,High weather resistance
4. Noise-free,Good heat dissipation
5. High grayscale ,High brightness ,Large view angle
6. Easy installation ,Easy maintenance

Model	P16-16	P16-33	P25-25	P33-33
Pixel composition	1R1G1B	1R1G1B	1R1G1B	2R2G2B
LED type	DIP346	DIP346	DIP346	DIP346
Pixel density(dots/m²)	3600	1800	1600	900
Brightness(cd/m²)	≥8000	≥7000	≥7000	≥7000
Power Max./Avg.(W/m²)	560/200	385/135	530/185	330/115
Transparency rate (%)	45	70	65	68
Minimum view distance(m)	16	25	25	33
LED cabinet size (mm)	500×1000	500×1000	500×1000/ 500×1500	500×1000
LED cabinet weight (kg/pc)	7.5	7	7/9.5	7
Fixing structure weight (kg/m²)	5
Refresh rate (Hz)	1920-3840
Working temperature (℃)	-20 ~ +60
Working humidity (RH)	10～90
Ingress protection(front & back)	IP65
Ventilation and heat dissipation	Natural ventilation
Cleaning method	High-pressure water jet
Shell material	Aluminium alloy
Control system	Integration
Maintenance mode	Front
Life time (hrs)	100,000
